Flange Mount Shaft-through Load Cell 0-1000kg Web Tension Sensor
The FZTK series shaft-through load cell is engineered for high-accuracy force monitoring in continuous industrial systems where stable tension control is critical. Designed as a flange mount load cell, it features a through-shaft architecture that allows direct integration onto rotating shafts, delivering a compact footprint while preserving structural stiffness and reducing mechanical deformation under load. Built with strain gauge sensing elements arranged in a full Wheatstone bridge, the sensor ensures precise signal output, strong temperature stability, and reliable performance for real-time web tension sensor applications. Its measurement range supports low to high loads, making it adaptable to diverse machinery configurations requiring consistent force feedback.
As a roll load cell solution, the FZTK is widely used in roller-based machinery equipped with pre-mounted bearings, allowing quick installation via a four-hole fixing pattern. This makes it particularly effective in compact equipment layouts where space optimization is essential without compromising measurement reliability. The sensor is commonly deployed in demanding web handling environments such as film production, paper converting, textile processing, printing, coating, and packaging systems. In these applications, precise tension regulation is essential to maintain material integrity and ensure consistent output quality. Acting as a high-performance web tension sensor, it delivers continuous feedback that supports automated control systems, helping operators minimize downtime, reduce scrap rates, and improve overall production efficiency across high-speed industrial lines.
Specifications
| Capacity | 15kg 25kg 50kg 75kg 100kg 150kg 200kg 300kg 500kg 600kg 1000kg |
| Rated output | 1.5 mV/V |
| Excitation | 3-12V |
| Zero balance | ±0.03mV/V |
| Nonlinearity | ±0.3% of full capacity |
| Hysteresis | ±0.3% of full capacity |
| Nonrepeatability | ±0.1% of full capacity |
| Creep(3min) | ±0.1% of full capacity |
| Safe overload | 150% of full capacity |
| Ultimate overload | 200% of full capacity |
| Compensated temperature | 0...+40oC |
| Operating temperature | -20...+60oC |
| Temperature shift zero | ±0.02% R.O./oC |
| Temperature shift span | ±0.02% R.O./oC |
| Input resistance | 380±30 ohms |
| Output resistance | 352±5 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP50 |
| Material of element | Alloy steel |
| Cable | Ø5.3*3000mm 4-core shielded |
| Wiring code @ Tension | Red--Excitation+ Black--Excitation- Green--Signal+ White--Signal- |
Flange Mount Shaft-through Load Cell 0-1000kg Web Tension Sensor
Click here to download datasheet
|
|

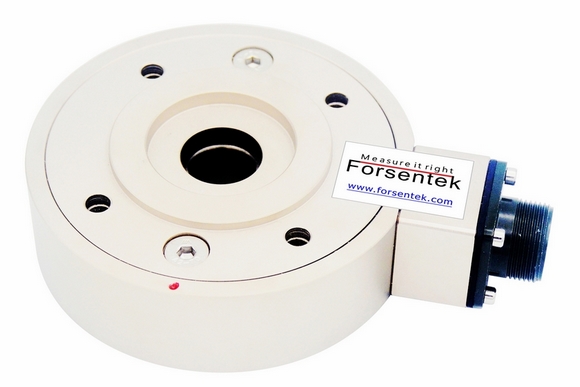

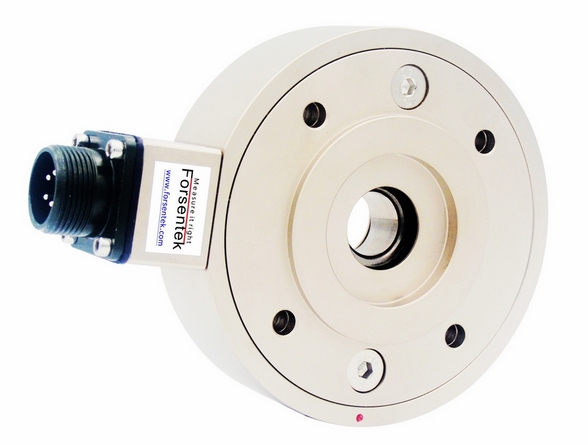

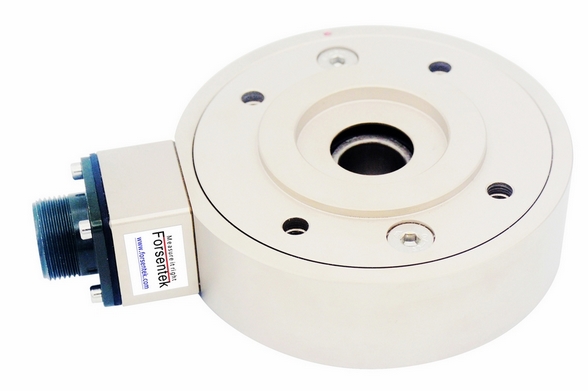

Flange Mount Shaft-through Load Cell 0-1000kg Web Tension Sensor Images
|
